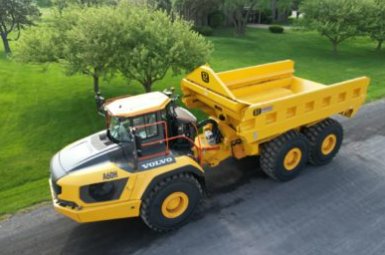

May 14, 2022 - Philippi-Hagenbuch has expanded its rear eject engineering capabilities to include one of the largest articulated haul trucks on the market, the Volvo A60H.
These trucks feature a body volume of 43.9 cu.yd (33.6 cu.m) with a 2:1 heap ratio, making these rear ejects 50% larger than the most common rear eject bodies available, the company said.
In partnership with G.W. Van Keppel, a dealership based in Kansas City, Missouri, Philippi-Hagenbuch shipped its first two rear eject bodies for Volvo A60H trucks to a mine in Oklahoma. Each of these rear ejects features an interior width of 156 in (3.96 m) and a loading height of 148 in and is built exclusively out of high-strength, abrasion-resistant Hardox® 450 steel for exceptional life and to handle the extremes they are put under within mining environments, the company says.
“Philippi-Hagenbuch is committed to detail in design, professionally engineering their products, understanding the applications and using only the best steel,” Taylor Killion, General Sales Manager, G.W. Van Keppel, says. “This makes them a great partner to provide strong and durable haul truck solutions that help our customers maximise their efficiency.
“We were confident in PHIL’s experience and ability to take on this project and produce a custom solution that would meet this client’s objectives.”
Philippi-Hagenbuch says it has custom-engineered hundreds of rear eject bodies for a variety of makes and models of off-highway haul trucks to increase productivity, safety and stability for many operations. With Philippi-Hagenbuch rear eject bodies, operators can effectively and safely discharge material without having to stop and raise the truck bed, even when the truck is out of position, driving up a hill or under overhead barriers with low clearance. Operators control the ejector blade to push material out of the body while the tailgate mechanically lowers. Rear ejects effectively dump even the stickiest material, further improving hauling efficiency by reducing carryback, according to the company.
Josh Swank, Philippi-Hagenbuch Vice President of Sales and Marketing, said: “We have complete trust in our engineering and manufacturing capabilities, which gives us confidence to take on projects that other companies may shy away from. In the past, we have engineered even larger rear eject bodies and trailers, so we are no strangers to projects of this size. The PHIL team works closely with each client to understand their application and specific needs, while simultaneously working with the dealer to achieve their priorities and the OEM to interface our equipment with their haul truck seamlessly.
“For this new entry to the haul truck market, we have created a new standardised solution for the Volvo A60H that can be easily implemented for other clients in varying industries.”
The A60H is the largest Volvo articulated hauler with a 33.6 cu.m body volume and 55,000 kg payload capacity.
Philippi-Hagenbuch recently updated its rear eject technology to include a newly engineered single, three-stage, double acting hydraulic cylinder that is robust enough to keep its rear ejects operating in extreme cold or in equatorial warm-weather locations, the company says. This cylinder was specifically designed for horizontal movement so it will not buckle or bind when it is fully extended while operating in a variety of dynamic environments.
